Explore Our Range of High-Performance and Switch Products

At DDPservers, we provide a comprehensive selection of server and switch products designed to meet the demanding needs of modern data centers and campus networks. Our solutions are carefully chosen to deliver optimal performance, reliability, and scalability for your critical IT infrastructure. Browse our catalog below.

Servers

High-performance servers for data centers and campus environments, tailored to project specifications.

Switches

Reliable and scalable switches to ensure seamless network connectivity and efficient data transfer.

Discover the Server Solutions

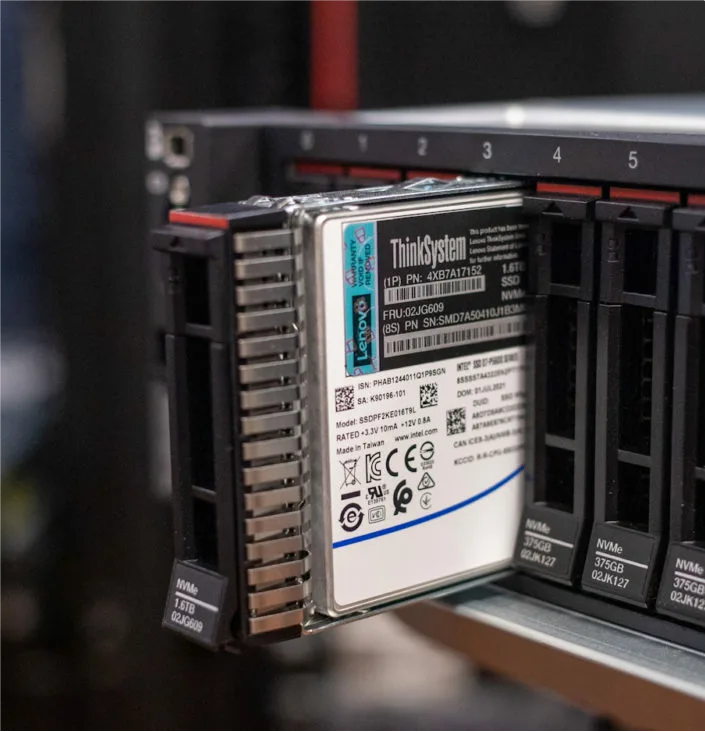

The Lenovo ThinkSystem SR650 V3 is engineered to accelerate performance across a wide range of workloads. From supporting the latest Intel Xeon Scalable processors to offering flexible storage options, this server is designed for demanding environments. Contact us to learn more about how it can benefit your organization.

  • Processor: Up to 2x Intel Xeon Scalable Processors
  • Memory: Up to 8TB DDR5 ECC Memory
  • Storage: Flexible storage configurations with support for NVMe and SAS drives

Discover the : Power and Versatility for Your Data Center

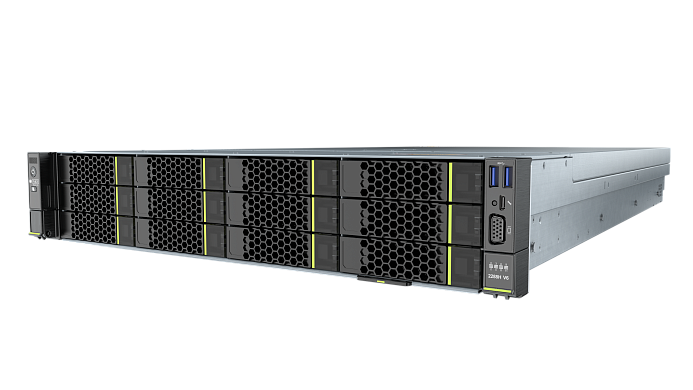

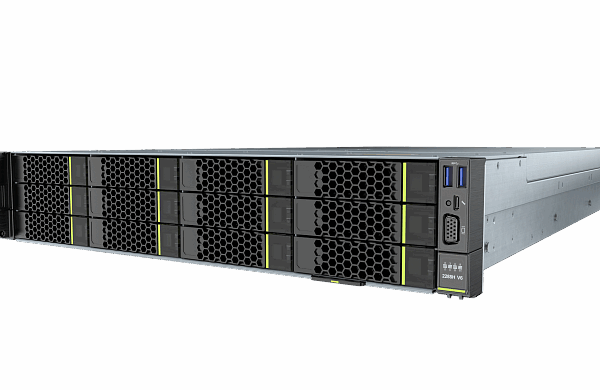

The FusionServer 2288H V6 is a cutting-edge rack server designed to handle a wide range of workloads, from virtualization and cloud computing to high-performance computing and big data analytics. Its flexible configuration options and robust performance make it an ideal choice for modern data centers.

  • Processor: Up to two Intel Xeon Scalable processors
  • Memory: Up to 32 DDR4 DIMMs
  • Storage: Flexible storage configurations with support for NVMe SSDs
  • Networking: High-speed networking options for optimal performance

Attention: The approximate prices are shown below. The final cost may vary. To clarify the current cost, please contact us.

Server SR650 V3CC build 241016
Server SR650 V3CC
Configuration: 7D76CTO1WW build 241016
№ Component Code Qty, pcs
1V3 2U 24x2.5" ChassisBLKK1
2Efficiency - Favor PerformanceBFYE1
325 Degrees CelsiusBL0H1
4Intel Xeon Gold 6554S 36C 270W 2.2GHz processorBYW92
5Server 96GB TruDDR5 5600MHz（2Rx4）RDIMMBWHV32
6Select storage devices no RAID59771
7PCIe Gen5 RetimerBLKY3
82U 8x2.5" Gen5 NVMe BPBS7Y3
92U 4x2.5” Mid NVMe Gen 5 BackplaneBS812
10M.2 NVMe 2-Bay RAID KitB8P91
11M.2 NVMeBTTY1
12M.2 PM9A3 960GB Read Intensive NVMe PCIe 4.0 x4 Non-Hot-Swappable Solid State DriveBXMH2
13Server SR650 V3CC x16/x16/E PCIe Generation 5 Adapter 1 or 2 v2BYPZ2
141800W 230V V2 Pt PSU Gen2BMUF2
152U V3 Performance Fan ModuleBLL66
16Toolless RailKit v2 EHD and CMB97N1
172U V3 EIA Latch StandardBQQ21
18PRC National Z TPM 2.0BPKS1
19Disable IPMI-over-LANB7XZ1
20XCC PlatinumBRPJ1
21Server SR650 V3CC MBBLL01
22Scan the SN from the CPU BoardBVMC1
2324x2.5" NVMe Label 1B8K82
2424x2.5" NVMe Label 2B8K41
252.5" 1x1 HDD FillerAVEN20
264x1 2.5" HDD FillerAVEP3
2724x2.5" HDD Sequence 16-23B8JZ1
282U V3 EIA right with FIOBQQ61
29Right EIA with FIO assemblyBXGY1
30Server SR650 V3CC Institutional Labeling, No CCC, No ES LogoC0ET1
31DC Warning Label for PRCB22B1
32XCC LabelB97B1
33Server XCC CPU ClipBP532
34SR650 V3CC Performance HeatsinkBP4Z2
35Label for 24x2.5"/12x3.5"/10x2AUTQ1
36MidBay 8 2.5" NVMe HDD CageB97W1
378x2.5" MID Cage for NVMeBU041
38Server OCP3 FillerB5WJ1
39Server logo LabelBQPS1
40Server V2 2U PackageB9861
411800W Pt Power Rating LBL PRCBBBF1
42MS 2FH Riser FillerBC4X1
432U MS 3FH Riser 1&2 CageBLLD1
442U MS 3FH Riser 1&2 Cage w/lblBPKD1
45SR650 V3CC Service Label for PRCBPF51
46SR650 V3CC model name LabelBPF31
47Server SR650 V3CC Firmware and Root of Trust Security Module v2 (for China)BYQM1
48Power MB to Front 2.5" BP v2BMPF3
49MCIO8x CBLBPEE2
50MCIO8x CBLBPEF4
51Swift8x-MCIO8x flat CBLBPEP1
52Swift8x-MCIO8x flat CBLBPEK1
53Server SR650 V3CC，Gen5 Cable, 4x2.5-inch Backplane, MCIO8x, 220 mmBXGQ4
54Gen5 Cable, 8X2.5" BP-RTM x,65BUYT2
55M.2 Mbappe-SLx4 CBLBS6Y1
56mid PWR/SBBPE81
57Server WW LPKBPK31
58N+N Redundancy With Over-SubscBE0E1
59High voltage (200V+)BK151
60G5 x16/x16/E Riser BPQV for RiBQ161
61G5 x16/x16/E Riser BPQV for RiBQ1D1
62XCC Pro, Per Endpoint w/3 Yr SW S&S13401
63Tray caddy 2.5” SM17A0624632
642.8m,13A/125-10A/250V,C13 to I change to Customized European specification wire2
65China CPK change to Customized English version1

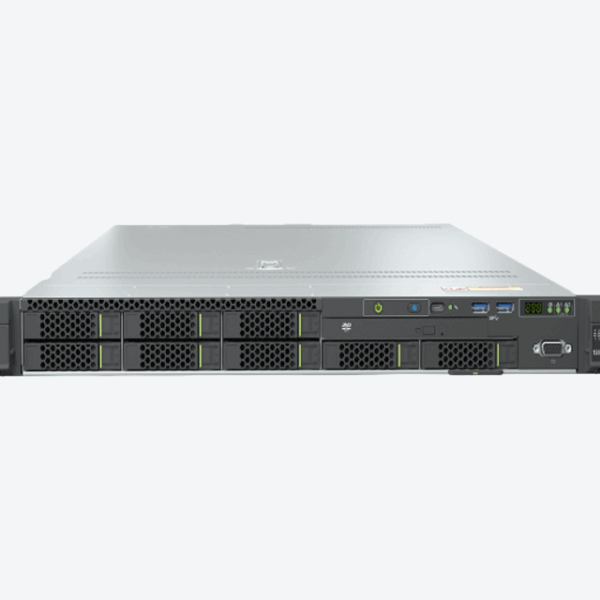

FusionServer 1288H V6 Configuration build 2501142
№ Model Description Part Number Qty
11288H V6-S8ADC1288H V6 (8*2.5 inch HDD Chassis) H12H-0602313MLY1
2PAC900S12-B2Server Platinum 900W Version 2.0 AC power supply-ST02313XSF2
3BC6NX91CPUIntel Xeon Gold 5315Y(3.2GHz/8-Core/12MB/140W)Ice lake Processor(with 1U heatpipe heatsink)02313SPH2
4M432R32DDR4 RDIMM,32GB,288pin,0.625ns,3200000KHz,1.2V,ECC,2Rank(2G*4bit)0620030916
5PM893480W2SSD,480GB,SATA 6Gb/s,Read Intensive,PM893 Series,2.5inch(2.5inch Drive Bay)0255Y0162
6XC333XC333 OCP3.0 Ethernet Adapter-10GE(BCM57412)-Dual Port-SFP+(without Optical Module)-PCIE 3.0 X8-Vendor ID 14e4-Device ID 16d6-2-Subvendor ID 1f24-Subdevice ID 20140302Y4351
7XC386XC386 OCP3.0 Ethernet Adapter-25GE(BCM57414)-Dual Port-SFP28(without Optical Module)-PCIE 3.0 X8-Vendor ID 14e4-Device ID 16d7-2-Subvendor ID 1f24-Subdevice ID 20130302Y4341
8BC1M01PRUU1*16X SLOT(PCIE4.0) RISER2 Module025801251
9BC1M01PRUV2*16X SLOT (PCIE4.0) RISER1 Module025801261
10XP212XP212 Ethernet Adapter,1Gb Electrical Interface(Intel I350),4-Port,RJ45,PCIe 2.0 x40231Y8041
11BC8M19FAN4056 Fan module02312UKK7
12C0IMSHC001High Speed Cable,Internal Mini SAS HD Cable,0.8m,Internal Mini SAS HD RA,8*(1P*30AWG+ 2*Drain)+8C*30AWG,Internal Mini SAS HD RA,RA-RA04051939-0012
13OMXD300201Optical transceiver,SFP+,850nm,10Gb/s,-7.3~-1dBm,-9.9dBm,LC, MM,0.3km3406Y0062
14OMXD300112Optical transceiver,25GBase-SR,0.1km3406Y0082
15SR_787X43_8X7_5Ball Bearing Rail Kit(Direct delivery material)212437891
16CC13EU180Power Cords Cable,Europe AC 250V10A,1.8m,C14SM,H05VV-F- 3*1.00²,C13SF,PDU Cable0405G0192
FusionServer 1288H V6 Configuration build 2501143
№ Model Description Part Number Qty
11288H V6-S8ADC1288H V6 (8*2.5 inch HDD Chassis) H12H-0602313MLY1
2PAC900S12-B2Server Platinum 900W Version 2.0 AC power supply-ST02313XSF2
3BC6NX86CPUIntel Xeon Gold 5320(2.2GHz/26-Core/39MB/185W)Ice lake Processor(with 1U VC heatsink)02313SPB2
4M432R32DDR4 RDIMM,32GB,288pin,0.625ns,3200000KHz,1.2V,ECC,2Rank(2G*4bit)0620030916
5PM893480W2SSD,480GB,SATA 6Gb/s,Read Intensive,PM893 Series,2.5inch(2.5inch Drive Bay)0255Y0162
6XC333XC333 OCP3.0 Ethernet Adapter-10GE(BCM57412)-Dual Port-SFP+(without Optical Module)-PCIE 3.0 X8-Vendor ID 14e4-Device ID 16d6-2-Subvendor ID 1f24-Subdevice ID 20140302Y4351
7XC386XC386 OCP3.0 Ethernet Adapter-25GE(BCM57414)-Dual Port-SFP28(without Optical Module)-PCIE 3.0 X8-Vendor ID 14e4-Device ID 16d7-2-Subvendor ID 1f24-Subdevice ID 20130302Y4341
8BC1M01PRUU1*16X SLOT(PCIE4.0) RISER2 Module025801251
9BC1M01PRUV2*16X SLOT (PCIE4.0) RISER1 Module025801261
10XP210XP210 Ethernet Adapter,1Gb Electrical Interface(Intel I350),2-Port,RJ45,PCIe 2.0 x40231Y8031
11BC8M20FAN4056 Plus Fan module02312UKJ7
12C0IMSHC001High Speed Cable,Internal Mini SAS HD Cable,0.8m,Internal Mini SAS HD RA,8*(1P*30AWG+ 2*Drain)+8C*30AWG,Internal Mini SAS HD RA,RA-RA04051939-0012
13OMXD300201Optical transceiver,SFP+,850nm,10Gb/s,-7.3~-1dBm,-9.9dBm,LC, MM,0.3km3406Y0062
14OMXD300112Optical transceiver,25GBase-SR,0.1km3406Y0082
15SR_787X43_8X7_5Ball Bearing Rail Kit(Direct delivery material)212437891
16CC13EU180Power Cords Cable,Europe AC 250V10A,1.8m,C14SM,H05VV-F- 3*1.00²,C13SF,PDU Cable0405G0192
FusionServer 1288H V6 Configuration build 2501144
№ Model Description Part Number Qty
11288H V6-S8ADC1288H V6 (8*2.5 inch HDD Chassis) H12H-0602313MLY1
2PAC900S12-B2Server Platinum 900W Version 2.0 AC power supply-ST02313XSF2
3BC6NX96CPUIntel Xeon Silver 4309Y(2.8GHz/8-Core/12MB/105W)Ice lake Processor(with 1U heatpipe heatsink)02313SPP1
4M432R16DDR4 RDIMM,16GB,288pin,0.625ns,3200000KHz,1.2V,ECC,2Rank(1G*8bit)062003204
5PM893480W2SSD,480GB,SATA 6Gb/s,Read Intensive,PM893 Series,2.5inch(2.5inch Drive Bay)0255Y0164
6CN2M94408I0G9440-8i-PCIe RAID SAS/SATA RAID Card-RAID0,1,10-12Gb/s-no Cache02312QWY1
7XC310XC310 BC53ETHF- GE350-T2 OCP3.0 Ethernet Card-2*GE(I350)-Dual Port-RJ45, PCIE 2.1 x4-Vendor ID 8086-Device ID 1521-2-Subvendor ID 1f24-Subdevice ID 200b0302Y0541
8BC1M01PRUV2*16X SLOT (PCIE4.0) RISER1 Module025801261
9XP210XP210 Ethernet Adapter,1Gb Electrical Interface(Intel I350),2-Port,RJ45,PCIe 2.0 x40231Y8031
10BC8M19FAN4056 Fan module02312UKK7
11C0IMSHC02HighSpeed-Internal Mini SAS HD Cable-0.85m-(Internal Mini SAS HD R/A)-(8*(1P*30AWG+ 2*Drain)+8C*30AWG)-(Internal Mini SAS HD STR)040510212
12SR_787X43_8X7_5Ball Bearing Rail Kit(Direct delivery material)212437891
13CC13EU300Power cord,Europe AC Power Cable,250V10A,3.0m,PFSM,(H05VVF 1.0²(3C)),C13SF,250V,10A,BLack40410562
14CC13EU180Power Cords Cable,Europe AC 250V10A,1.8m,C14SM,H05VV-F- 3*1.00²,C13SF,PDU Cable0405G0192
FusionServer 2288H V6 Configuration build 2501145
№ Model Description Part Number Qty
12288H V6-B12AKC2288H V6 (12*3.5inch HDD EXP Chassis)H22H-060231Y4161
2PAC900S12-B2Server Platinum 900W Version 2.0 AC power supply-ST02313XSF2
3ER3480GBM2HOTM.2 SSD,SATA 6Gb/s-480GB,hot-swappable0255Y6972
4BC6NX79CPUIntel Xeon Silver 4310(2.1GHz/12-Core/18MB/120W)Ice lake Processor(with 1U heatpipe heatsink)02313SQY2
5M432R32DDR4 RDIMM,32GB,288pin,0.625ns,3200000KHz,1.2V,ECC,2Rank(2G*4bit)062003098
6BCM957414N4140CEthernet Adapter,2*25GE(Broadcom BCM57414),Dual-Port,SFP28,PCIE 3.0 x8-14e4-16d7-2,OCP 3.00257Y1081
7BC1M09PRUS2*8X SLOT(PCIE4.0)-RISER3 PSU Module025801691
8XP212XP212 Ethernet Adapter,1Gb Electrical Interface(Intel I350),4-Port,RJ45,PCIe 2.0 x40231Y8041
9BCM957412A4120ACNetwork Card,10 Gigabit,64bit,SFP+,2,PCIE 3.0 x8-14e4-16d6-20257Y1511
10BC5M02RLAH1XP270-M2-(SAS3808-BootCard)-M.2 RAID PCIE card-RAID0,1,JBOD-No CacheSupport Sideband Management0256Y0661
11OMXD300201Optical transceiver,SFP+,850nm,10Gb/s,-7.3~-1dBm,-9.9dBm,LC, MM,0.3km3406Y0062
12OMXD300112Optical transceiver,25GBase-SR,0.1km3406Y0082
13SR_787X43_8X7_5Ball Bearing Rail Kit(Direct delivery material)212437891
14CC13EU180Power Cords Cable,Europe AC 250V10A,1.8m,C14SM,H05VV-F- 3*1.00²,C13SF,PDU Cable0405G0192
FusionServer 2288H V6 Configuration build 2411231
№ Model Description Part Number Qty
12288H V6-S25ADC012288H V6 (25*2.5inch HDD Chassis B)H22H-060231Y4951
2PAC1500S12-B1Server Platinum 1500W Version 2.0 AC power supply0231Y0332
3BC6NX77CPUIntel Xeon Silver 4314 (2.4GHz/16-Core/24MB/135W)Ice lake Processor(with 2U Profile heatsink)02313SQV2
4M432R64DDR4 RDIMM DRAM,64GB,288pin,0.625ns,3200000KHz,1.2V,ECC,2Rank(4G*4bit)062003238
5PM893480W2SSD,480GB,SATA 6Gb/s,Read intensive,PM893 Series,2.5inch(2.5inch Drive Bay)0255Y0163
6PM1643A7T6S2SSD,7680GB,SAS 12Gb/s,Read Intensive,PM1643a Series,2.5inch(2.5inch Drive Bay)02313EMD12
7BC1M10SCAP35xx/39xx RAID Card SuperCap0231Y3841
8XC382XC382 BC53ETHB1- OCP3.0 Ethernet Card-25GE(CX5)-Dual Port-SFP28 (without optical module)-PCIE 3.0 X8-Vendor ID 15b3-Device ID 1017-2-Subvendor ID 1f24-Subdevice ID 200c0302Y0551
9BC1M01PRUD1*16X+2*8X SLOT(PCIE4.0)-RISER1&2 Module025801181
10CN2M94608I4G9460-8i,PCIe RAID Controller,4GB Cache,PCIe x8,HH/HL02312QWW1
11XC-0405Y017-002High Speed Cable,HS Cable Slimline-2*mini SAS HD,0.8m&0.8m,Slimline X8 STR,2*((31AWG*1Pair+31AWG*2Drain)*8+31AWG*1Pair*4),2*Internal mini SAS HD R/A,Slimline-2*mini SAS HD0405Y017-0021
12SR_787X43_8X7_5Ball Bearing Rail Kit(Direct delivery material)212437891
13CMA_446X89X38Cable Management Arm(Direct delivery material)212441081
14CC13EU180Power Cords Cable,Europe AC 250V10A,1.8m,C14SM,H05VV-F- 3*1.00²,C13SF,PDU Cable0405G0192
