Description

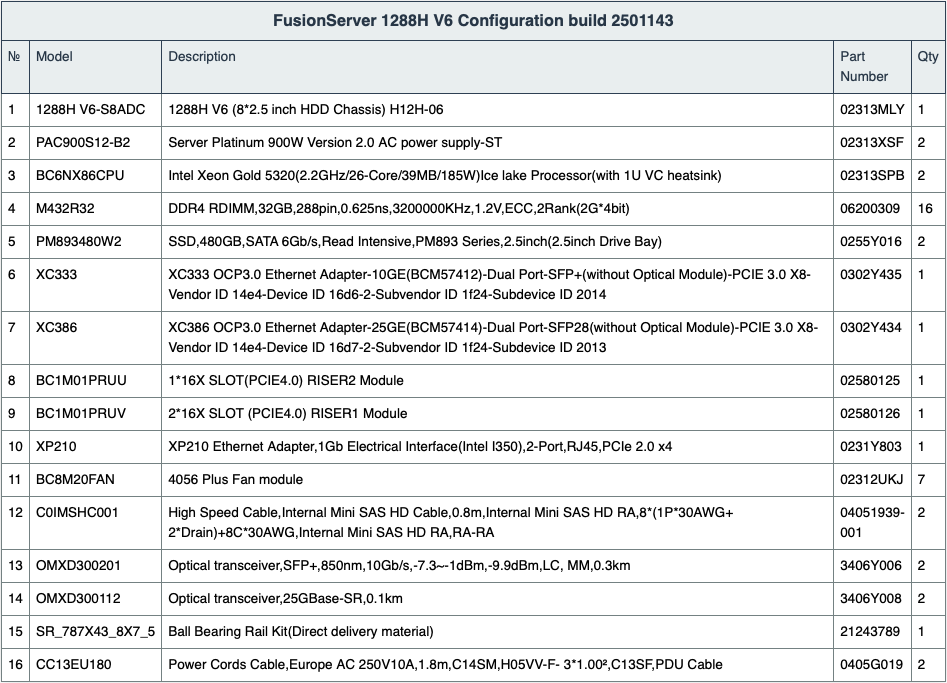

| № | Model | Description | Part Number | Qty |
|---|---|---|---|---|
| 1 | 1288H V6-S8ADC | 1288H V6 (8*2.5 inch HDD Chassis) H12H-06 | 02313MLY | 1 |
| 2 | PAC900S12-B2 | Server Platinum 900W Version 2.0 AC power supply-ST | 02313XSF | 2 |
| 3 | BC6NX86CPU | Intel Xeon Gold 5320(2.2GHz/26-Core/39MB/185W) Ice lake Processor(with 1U VC heatsink) |
02313SPB | 2 |
| 4 | M432R32 | DDR4 RDIMM,32GB,288pin,0.625ns,3200000KHz, 1.2V,ECC,2Rank(2G*4bit) |
6200309 | 16 |
| 5 | PM893480W2 | SSD,480GB,SATA 6Gb/s,Read Intensive,PM893 Series, 2.5inch(2.5inch Drive Bay) |
0255Y016 | 2 |
| 6 | XC333 | XC333 OCP3.0 Ethernet Adapter-10GE(BCM57412) Dual Port-SFP+(without Optical Module)-PCIE 3.0 X8 Vendor ID 14e4-Device ID 16d6-2-Subvendor ID 1f24-Subdevice ID 2014 |
0302Y435 | 1 |
| 7 | XC386 | XC386 OCP3.0 Ethernet Adapter-25GE(BCM57414) Dual Port-SFP28(without Optical Module)-PCIE 3.0 X8 Vendor ID 14e4-Device ID 16d7-2-Subvendor ID 1f24-Subdevice ID 2013 |
0302Y434 | 1 |
| 8 | BC1M01PRUU | 1*16X SLOT(PCIE4.0) RISER2 Module | 2580125 | 1 |
| 9 | BC1M01PRUV | 2*16X SLOT (PCIE4.0) RISER1 Module | 2580126 | 1 |
| 10 | XP210 | XP210 Ethernet Adapter,1Gb Electrical Interface (Intel I350),2-Port,RJ45,PCIe 2.0 x4 |
0231Y803 | 1 |
| 11 | BC8M20FAN | 4056 Plus Fan module | 02312UKJ | 7 |
| 12 | C0IMSHC001 | High Speed Cable,Internal Mini SAS HD Cable,0.8m, Internal Mini SAS HD RA,8*(1P*30AWG+ 2*Drain) +8C*30AWG,Internal Mini SAS HD RA,RA-RA |
04051939-001 | 2 |
| 13 | OMXD300201 | Optical transceiver,SFP+,850nm,10Gb/s,-7.3~-1dBm, -9.9dBm,LC, MM,0.3km |
3406Y006 | 2 |
| 14 | OMXD300112 | Optical transceiver,25GBase-SR,0.1km | 3406Y008 | 2 |
| 15 | SR_787X43_8X7_5 | Ball Bearing Rail Kit(Direct delivery material) | 21243789 | 1 |
| 16 | CC13EU180 | Power Cords Cable,Europe AC 250V10A,1.8m,C14SM, H05VV-F- 3*1.00²,C13SF,PDU Cable |
0405G019 | 2 |
